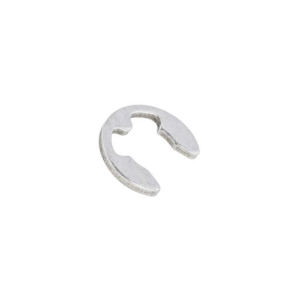

E Clip DIN 6799 (D1500) 24mm

£2.95£17.44 (Exc. VAT)

Groove Diameter: 24.0mm

Suits Shaft Size: 25.0mm – 37.0mm

Thickness: 2.0mm

Material: Carbon Spring Steel

DIN Spec: 6799

Other References: D1500 / 7133


🚚 NEXT WORKING DAY DELIVERY AVAILABLE – ORDER BEFORE 2:30PM MON-FRI


Qty shown in stock = Number of packs available

Clear

Description

24mm E Clips

This part can be manufactured in materials such as A4 / 316 Stainless, Titanium & Inconel. We can also offer bulk supply of this part. Please contact us today for a free quotation, emailsales@calebcomponents.com

  • Shaft Size: Min 25.00mm – Max 38.00mm
  • Groove Diameter: 24.00mm (+0.00mm , -0.13mm)
  • Outside Diameter: 43.65mm
  • Groove width: 2.05mm
  • Thickness: 2.00mm
  • Material: Carbon Spring Steel
  • Finish: Phosphated

Product Code: ETC0240

Use of an E-Clip:

An E-Clip is a basic form of a Circlip. They have the advantage that they can be
inserted form the side of the shaft rather than inserting from the end. Also, each E-Clip
has flexibility on the shaft size that it will suit.

Additional information

Pack Quantity

2 Pack, 5 Pack, 10 Pack, 50 Pack, 100 Pack
