Description

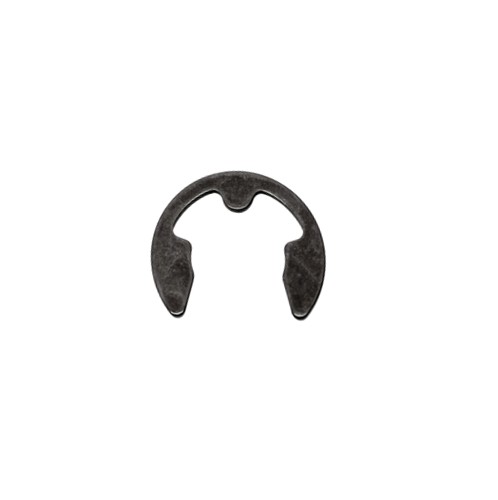

E-Clips are a basic form of a Circlip. They have the advantage that they can be
inserted from the side of the shaft rather than inserting from the end. Also, each E-Clip
has flexibility on the shaft size that it will suit.
- Shaft Size: Min 7.00mm – Max 9.00mm
- Groove Diameter: 6.00mm (+0.00mm , -0.075mm)
- Outside Diameter: 11.75mm
- Groove width: 0.64mm
- Thickness: 0.70mm
- Material: Carbon Spring Steel
- Finish: Phosphated
Product Code: ETC0060
