Understanding Inverted Lug Circlips: The Flush-Fit Retaining Rings

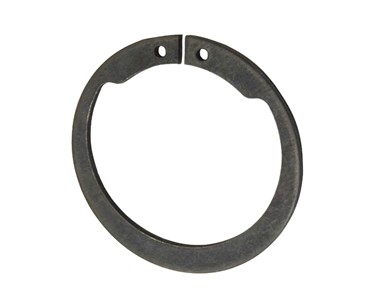

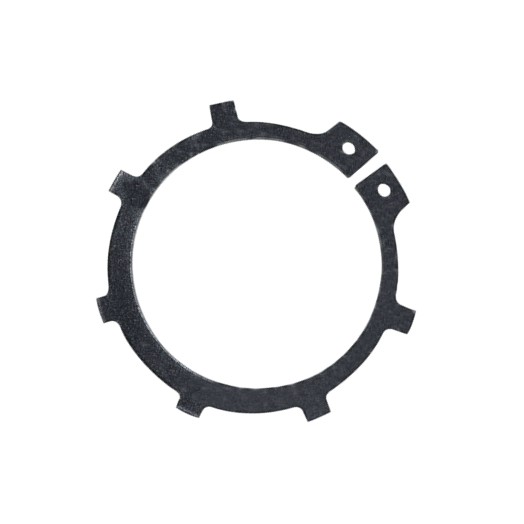

Inverted lug circlips (retaining rings) offer a space-saving alternative to standard retaining rings. Standard circlips have positioning holes (lugs) that extend outward or inward. In contrast, inverted lug circlips reverse this design. Their lugs face inward on external rings, or outward on internal rings.
This design modification creates a perfectly flush surface when installed.
Key Advantages:
High Clearance: The flipped lugs sit entirely inside the groove or housing to prevent interference with nearby moving components.
Large Radial Uniformity: These rings maintain a much lower profile than standard fasteners.
Better Aesthetic Finish: The hidden lugs provide a clean, streamlined look for exposed mechanical assemblies.
Continuous Contact: They offer high uniform seating around the entire circumference of the shaft or bore.
In the oil and gas sector, equipment must survive some of the most hostile environments on Earth. High temperatures, corrosive chemicals, and immense pressures quickly destroy standard coil springs. To maintain constant sealing and structural integrity, the industry relies heavily on disc springs (also known as Belleville washers).
These conical-shaped rings pack immense force into tight spaces, making them critical for downhole, subsea, and surface equipment.
Why Disc Springs Beat Coil Springs in Heavy Industry:
Standard coil springs deform or lose tension under extreme oilfield conditions. Disc springs offer distinct advantages:
High Force, Low Space: They generate massive clamping force with minimal axial deflection.
Customisable Stack Configurations: Stacking them in series increases deflection, while stacking them in parallel increases force. Stacking in both combines both benefits.
Damping Capabilities: Parallel stacking absorbs heavy shocks and dampens harsh vibrations from drilling operations.
Predictable Performance: They maintain consistent force even during severe thermal expansion and contraction.
Exotic Materials for Harsh Environments
Standard carbon steel will fail rapidly in sour gas or subsea applications. Oil and gas disc springs rely on specialized metallurgy:
Inconel (X-750 and 718): The industry standard for high-temperature and highly corrosive environments. They resist hydrogen embrittlement and sour gas (H₂S).
Titanium Alloys: Selected for subsea applications where lightweight components and absolute saltwater corrosion resistance are vital.
Phos Bronze / Nimonic: Used in specific downhole tools requiring non-magnetic properties or extreme creep resistance at temperatures exceeding 500°C.
Critical Oilfield Applications
Valves and Actuators: Disc springs maintain a constant live-load on valve stem packings to prevent hazardous fluid or gas leaks.
Downhole Drilling Tools: They absorb massive impact loads in drilling jars and shock tools, protecting sensitive electronics.
Subsea Wellheads: They supply the permanent, high-tonnage clamping force required to hold subsea connectors secure against ocean currents and high pressure.
Blowout Preventers (BOPs): They act as fail-safe energy storage units to mechanical close gates when hydraulic pressure fails.
Our Standard Carbon Steel Disc Springs to DIN 2093 are available to purchase online.
Imagine you are servicing a heavy stamping die or an injection mold. The alignment pins are pressed into a “blind hole”—a hole that does not drill all the way through the part.
If you use a standard solid pin, there is no way to tap it out from the reverse side. Technicians are often forced to weld a nut to the top of the pin or attempt to drill it out. This ruins the pin, risks damaging the expensive surrounding component, and wastes valuable production time.
Extractable pins completely eliminate this issue, offering three massive benefits:
Zero Component Damage: You pull the pin cleanly without marring the workpiece.
Rapid Maintenance: Molds, fixtures, and dies can be stripped down and rebuilt in a fraction of the time.
Repeatable Accuracy: Because the removal process is non-destructive, the integrity of the reamed hole is preserved for future assemblies.
How to extract them: Step-by-Step
Removing these pins requires the right mechanical leverage. Never use pliers or vice grips, as they will score the precision-ground exterior.
Clear the Thread: Ensure the internal thread is free of debris, grease, or metal shavings.
Engage the Tool: Thread a matching pull-bolt, a mechanical puller sleeve, or a specialized slide hammer into the pin.
Apply Axial Force: Use the tool to apply a straight, perpendicular upward force. The slide hammer will pop the pin out cleanly, even if it is a heavy press-fit.
Where can I buy Extractable Dowel Pins?
There are available to buy directly through our online store:
Loose fasteners can cause catastrophic equipment failure. Vibrations from motors, vehicles, and daily use slowly turn screws until they detach. Regular flat washers cannot prevent this. You need shakeproof washers.
This guide explains how these small components protect your projects from severe vibration.
What is a Shakeproof Washer?
A shakeproof washer is a specialized locking component designed to prevent nuts, bolts, and screws from loosening. Unlike standard flat washers that just distribute weight, these hardware pieces use mechanical tension and physical barriers to grip the mating surfaces. They are critical in high-vibration environments like automotive engines, industrial machinery, and household appliances.
The Core Types of Shakeproof Washers
Choosing the right type depends on your specific assembly material and the level of vibration.
1. External Tooth Lock Washers
Design: Teeth extend outward from the outer rim.
Mechanism: The teeth bite into the bolt head and the mating surface.
Best For: Maximum torsional resistance with large screw heads.
2. Internal Tooth Lock Washers
Design: Teeth project inward toward the center hole.
Mechanism: The teeth bite into the shank of the fastener.
Best For: Small screw heads or applications requiring a clean, snag-free exterior finish.
Standard washers merely distribute pressure or prevent a nut from backing off a bolt. Starlock Washers serve as standalone retaining clips. When you slide the washer down a plain cylindrical shaft, the angled internal teeth deflect outward. The moment any back-off force is applied, those sharp teeth bite deeply into the surface of the shaft—whether it is made of steel, plastic, or composite material. This creates an immediate, permanent grip.
Key Benefits:
Zero Threading Required: Saves time by completely removing the need to cut threads or machine snap-ring grooves.
Vibration Resistant: Provides persistent tension to stop components from rattling loose on moving machinery.
Instant Assembly: Easily pushes manually or via automated assembly tools onto plastic studs or metal axles.
Here at Caleb Components, we offer Uncapped Starlock Washers, available to purchase directly online.
A cluttered workspace slows you down and sparks frustration. Tool Clips offer a simple, highly effective way to reclaim your wall space and organize your gear. Here is everything you need to know about choosing and installing the perfect Tool Clips for your shop, garage, or shed.
Why Tool Clips Are Essential:
Maximize Space: They lift items off your workbench and onto unused wall space.
Instant Access: You can see every tool at a glance without digging through drawers.
Protect Gear: Storing tools securely prevents them from banging together and getting damaged.
Versatile Hold: They grip everything from thin screwdrivers to heavy push brooms.
Split cotter pins are simple, highly effective metal fasteners used to secure machinery components. They prevent nuts, bolts, and pins from vibrating loose during operation.
A split cotter pin consists of a single piece of wire bent in half, forming a rounded eyelet head at one end and two unequal tines at the other.
The Design: The unequal length of the tines makes them easy to separate during installation.
The Mechanism: You insert the pin into a pre-drilled hole (often in a clevis pin or a castellated nut).
The Locking Action: Once inserted, you bend the tines outward to lock the pin firmly in place.
⚙️Key Applications and Uses
Castellated Nuts: Secures wheel bearings and automotive steering linkages.
Clevis Pins: Locks pivot points on construction and agricultural machinery.
Marine Rigging: Holds critical sailboat rigging secure against rough waves.
Aeronautics: Provides fail-safe mechanical backups on control rods.
Ever wonder how industrial machines stay tightly bolted together under extreme heat and violent vibrations? Standard flat washers can’t handle it. That is where the Belleville washer comes in.
Also known as a coned-disc spring, this slightly cone-shaped washer acts like a heavy-duty mechanical spring. Instead of just sitting flat, it flexes under pressure to maintain constant tension on a bolt.
Here is why they are engineering lifesavers:
Absorbs Vibrations: They act like shock absorbers, keeping bolts from backing out.
Handles Extreme Heat: They expand and contract with temperature shifts to prevent joint loosening.
Saves Space: They support massive mechanical loads in a fraction of the space of a coil spring.
Customisable Power: You can stack them in different directions to multiply either their strength or their flexibility.
You can shop our full range of Belleville Washers online:
Solid Dowel Pins (DIN 6325) are generally used to offer a secure and accurate location between two components. These Pins are through hardened and ground to m6 tolerance.
Here at Caleb Components, we stock a fantastic range of Solid Dowel Pins, available for same day shipping.
